Toshiba CF1L printhead

$641.00

This Toshiba CF1L is an inkjet head that offers a long-awaited solution of enhancing jetting reliability, and its print quality well fits a wide range of application from ceramic, transpromotional, label & packaging to sign & graphics.

Quantity
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

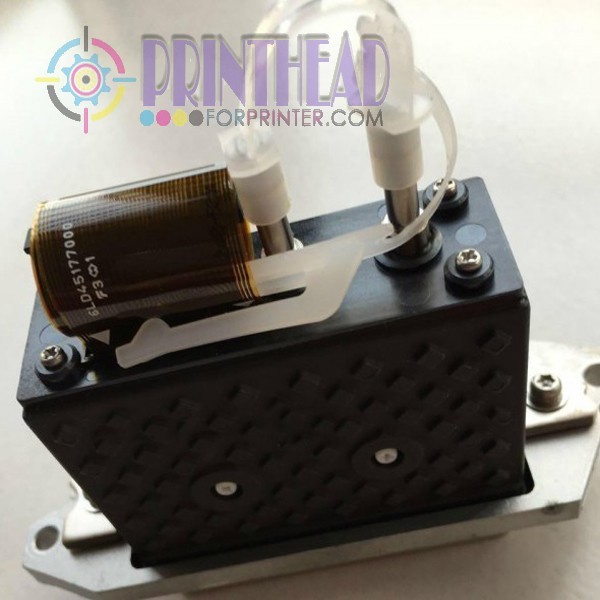

Original Toshiba CF1L printhead
Toshiba TEC CF1L/CK1L printhead

Toshiba TEC CF1L the ultimate inkjet head for excellent jetting reliability with ink circulation. This Toshiba CF1L is an inkjet head that offers a long-awaited solution of enhancing jetting reliability, and its print quality well fits a wide range of application from ceramic, transpromotional, label & packaging to sign & graphics.
In particular, CF1L demonstrates is full merit for a singlepass printing where reliability is a top priority.

Specifications :
    Print Method: Drop on demand piezo
    Print Width: 53.7mm
    Number of channels: 636
    Resolution: 300dpi / 84.5 micron
    Grayscale level: 8-levels (0.5 - 7 dpd)
    Drop Volume: 64 - 90pl
    Maximum dot frequency: 4.8kHz (at max dpd)
    Linear speed: 24m/min (at max dpd)
    Driving voltage: 14 - 31V
    Drop velocity: 7 - 9 (m/s)
    Weight: 161g (185g with positionning plate)
    Dimension: 94 (W) x 79 (D) x 26 (H) mm / 111 (W) x 79 (D) x 34 (H) mm with repositionning plate
    Jettable fluids: UV-curing, oil-based
