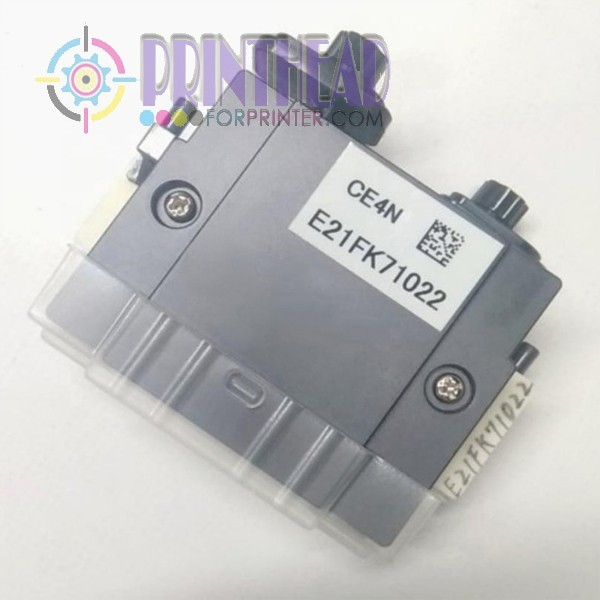

Toshiba CE4N Printhead
$799.00
This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number KX-CE308644CS-Gen4). This part does not include the metallic bracket that can be easily re-used from the previous head. If the metallic bracket also needs to be replaced, part number M008386 should be purchased instead.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
New Original Toshiba CE4N Printhead for Mimaki UJF-6042/UJF6042
This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number KX-CE308644CS-Gen4). This part does not include the metallic bracket that can be easily re-used from the previous head. If the metallic bracket also needs to be replaced, part number M008386 should be purchased instead.
Product Specifications :
Technology: Multi-drop grayscale micro-piezo
Grayscale levels: 16
Active nozzles: 318
Print swathe width: 53.6 mm
Nozzle pitch: 169 μm
Native resolution: 150 dpi
Printhead weight: 148 g
Dimensions: 85 x 70 x 23 mm
Drop volume: 6 - 90 pl
Typical firing frequency: 2.8 - 28 kHz
Ink Compatibility: oil-based pigment ink and UV curable pigment ink
Printer compatibility :
Mimaki JFX-1615
Mimaki JFX-1615Plus
Mimaki JFX-1631
Mimaki JFX-1631Plus
Mimaki UJF-706
Mimaki UJV-110
Mimaki UJV-160
Specific References
This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number KX-CE308644CS-Gen4). This part does not include the metallic bracket that can be easily re-used from the previous head. If the metallic bracket also needs to be replaced, part number M008386 should be purchased instead.
