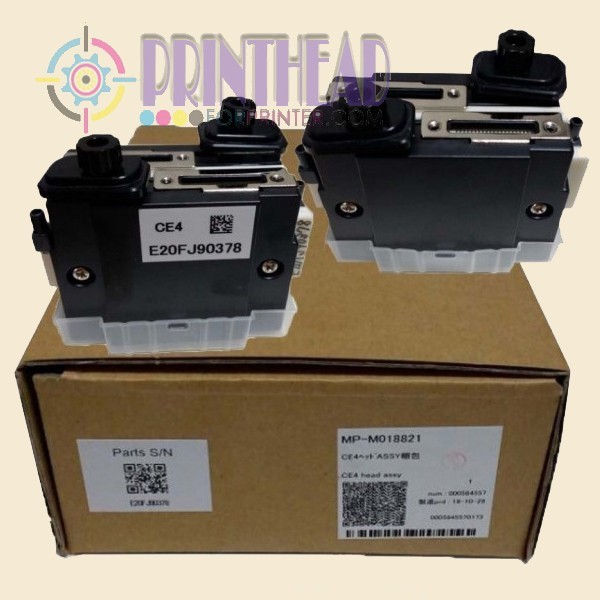

Toshiba CE4 Head Assy UJF MK-II - M018821

$619.00

This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers.

Quantity
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number M018821 replacing M008386 & KX-CE308644CS-CE4). This part does not include the metallic bracket that can be easily re-used from the previous head.

Product Specifications :
    Technology: Multi-drop grayscale micro-piezo
    Grayscale levels: 16
    Active nozzles: 318
    Print swathe width: 53.6 mm
    Nozzle pitch: 169 μm
    Native resolution: 150 dpi
    Printhead weight: 148 g
    Dimensions: 85 x 70 x 23 mm
    Drop volume: 6 - 90 pl
    Typical firing frequency: 2.8 - 28 kHz
    Ink Compatibility: oil-based pigment ink and UV curable pigment ink

Printer compatibility :

     Mimaki JFX-1615
     Mimaki JFX-1615Plus
     Mimaki JFX-1631
     Mimaki JFX-1631Plus
     Mimaki UJF-706
     Mimaki UJV-160
