Mimaki UJF-7151 Printhead M017429

$791.00

This Head Assembly is suitable for Mimaki UJF-7151 Plus printers. This is the original Mimaki pm M017429.

Quantity
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

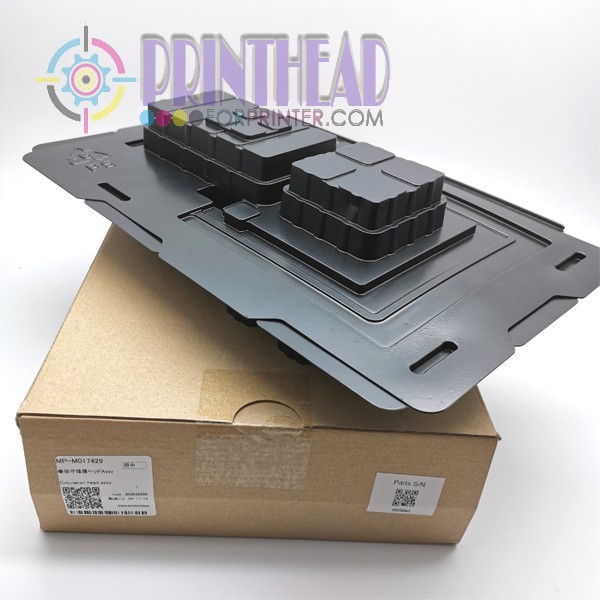

Original Mimaki UJF-7151 UV printer printhead M017429
Mimaki UJF-7151 Plus Printhead - M017429

This head assembly is suitable for Mimaki UJF-7151 Plus printers. This is the original Mimaki part (number M017429 replaced by MP-M025074). This head assembly includes brackets, tubes, damper and subtank.

Specifications :

    Print Method: On-Demand piezo technology
    Ink Re-circulation Structure: Ink re-circulation through all channels
    Print Width: 53.7mm
    Nozzles: 636
    Nozzle Resolution: 300npi
    Number of Lows: 2
    Nozzle Spacing (Row to row distance): 4.64mm
    Grayscale Level: 4 levels/0,5,6,7drops
    Drop Volume: 57~80pL
    Frequency: 4.8kHz/7drops
    Power Supply Voltage for Driving the Head: 14~31V
    Power Supply Voltage for Driving Circuit: 5V, 39V
    Ink Type: UV-curing
    Size, Weight: 94.1mm(W)×26mm(D)×79mm(H), 161g

Printer compatibility :

   Mimaki UJF-7151 Plus
