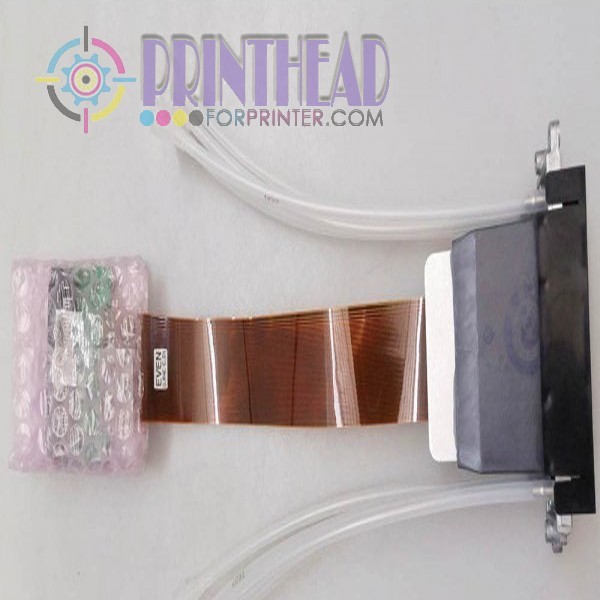

Mimaki TS500-1800 Gen5 Printhead Assy Type D MP M022653

$1,128.00

This Gen5 (MH5420/5440) N221345D Printhead Assy Type-D is suitable for Mimaki TS500-1800 & TX500-1800 series printers.

Quantity
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Original Mimaki TS500 TX500 Print head MP-M014140 M022653
Mimaki Gen5 Print Head for TS500 TX500 Print Head MP-M022653

This Gen5 (MH5420/5440) N221345D Printhead Assy Type-D is suitable for Mimaki TS500-1800 & TX500-1800 series printers. This is the original Mimaki part (number MP-M022653 replacing M014140).

Product Specifications :

    Dimensions: 89 x 25 x 69 mm (excluding cables)
    Head materials: SST, Nickel alloy and Epoxy Adhesive
    Nozzle plate surface: Coated SST
    Number of nozzles: 4 x 320 nozzles
    Nozzle spacing: 0.1693 mm
    Nozzle density: up to 600 npi
    Piezo yype: D33 Stacked PZT
    Temperature control: Integrated Heater and Thermistor
    Operator temperature range: Up to 80° C
    Native drop volume: 7 pl
    Drop volume range: 7 - 35 pl
    Drop velocity: 7 m/s
    Jetting frequency: Up to 60 kHZ
    Life: 100 billion actuations per nozzle

Printer compatibility :

   Mimaki TS500-1800
   Mimaki TX500-1800B
   Mimaki TX500-1800DS
