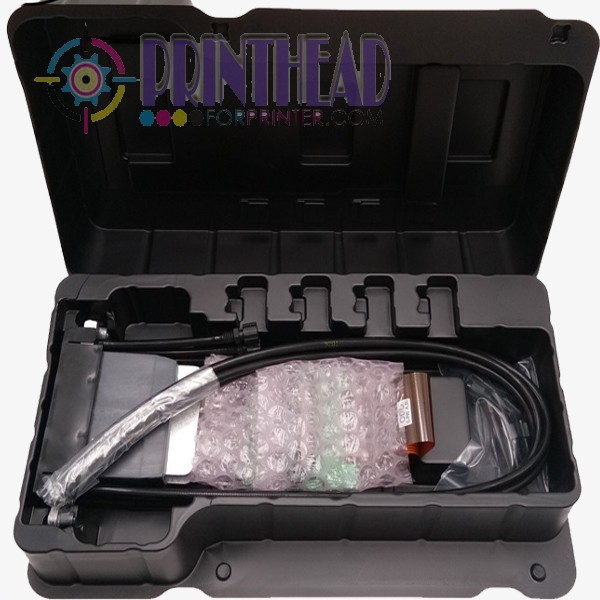

Mimaki JV400-LX GEN5 printhead

$690.00

This GEN5 (MH5420/5440) printhead is suitable for Mimaki JV400-130SUV & JV400-160SUV printers. This is the original Mimaki.

Quantity
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

This GEN5 (MH5420/5440) printhead is suitable for Mimaki JV400-130SUV & JV400-160SUV printers. This is the original Mimaki.

Product Specifications :

    Dimensions: 89 x 25 x 69 mm (excluding cables)
    Head materials: SST, Nickel alloy and Epoxy Adhesive
    Nozzle plate surface: Coated SST
    Number of nozzles: 4 x 320 nozzles
    Nozzle spacing: 0.1693 mm
    Nozzle density: up to 600 npi
    Piezo yype: D33 Stacked PZT
    Temperature control: Integrated Heater and Thermistor
    Operator temperature range: Up to 80° C
    Native drop volume: 7 pl
    Drop volume range: 7 - 35 pl
    Drop velocity: 7 m/s
    Jetting frequency: Up to 60 kHZ
    Life: 100 billion actuations per nozzle

Printer compatibility :

   Mimaki JV400-130LX
   Mimaki JV400-160LX
