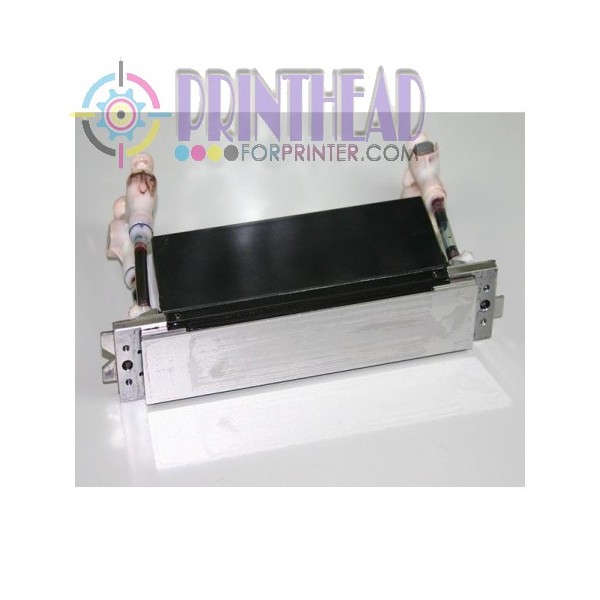

Kyocera KJ4A-0300 KJ4A-RH Inkjet Printheads
$1,530.00
Kyocera KJ4A-RH UV Printhead
This new generation Kyocera KJ4A-RH is designed for high speed single-pass and multi-pass applications with printers using UV ink. It is a 600dpi one colour printhead with a maximum drive frequency of 30kHz.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Kyocera KJ4A-0300 KJ4A-RH Print 3pl untuk Printer Flatbed Uv
This new generation Kyocera KJ4A-RH is designed for high speed single-pass and multi-pass applications with printers using UV ink. It is a 600dpi one colour printhead with a maximum drive frequency of 30kHz.
The Kyocera KJ4A-RH is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply.
Specifications
Ink Type: UV Ink
Dimensions: 200 × 30 × 68.9mm
Dry Weight: 420g
Total Nozzles:2.656
Nozzle Pitch: 0.042mm
Standard Resolution: 600 x 600dpi
Print Width: 108.25mm
Max. Drive Frequency:30kHz
Drop Volume: 5, 7, 12 and 18pl
Max. Sprint Speed:70m/min
Input Voltage:3.3 V for logic / 29 V for driving
Temperature Control:Reservoir heater and thermistor are equipped
KJ4A-0300
Specific References
Kyocera KJ4A-RH UV Printhead
This new generation Kyocera KJ4A-RH is designed for high speed single-pass and multi-pass applications with printers using UV ink. It is a 600dpi one colour printhead with a maximum drive frequency of 30kHz.
